Machine Parameters

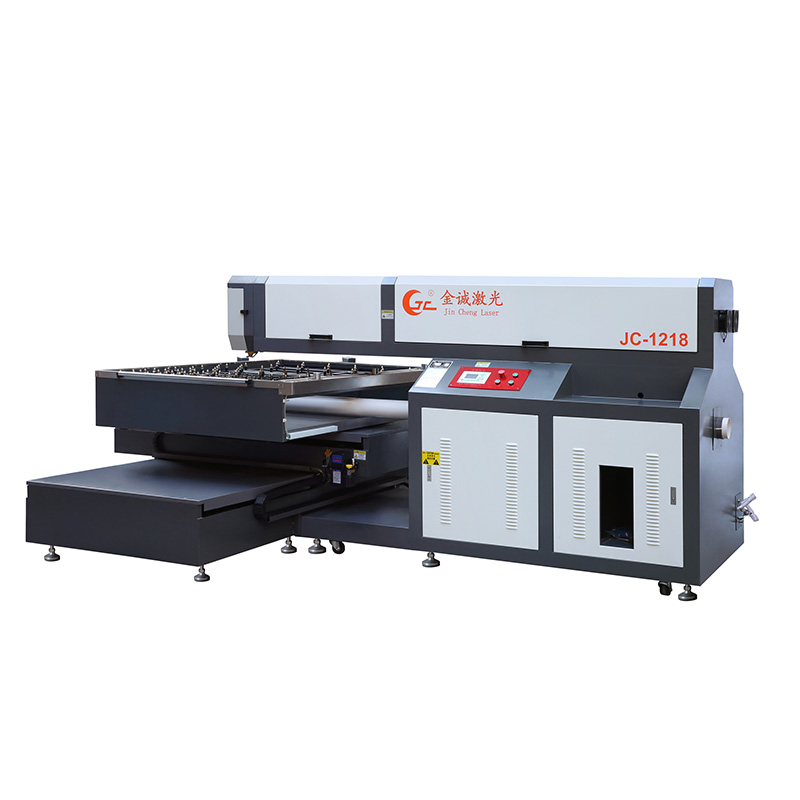

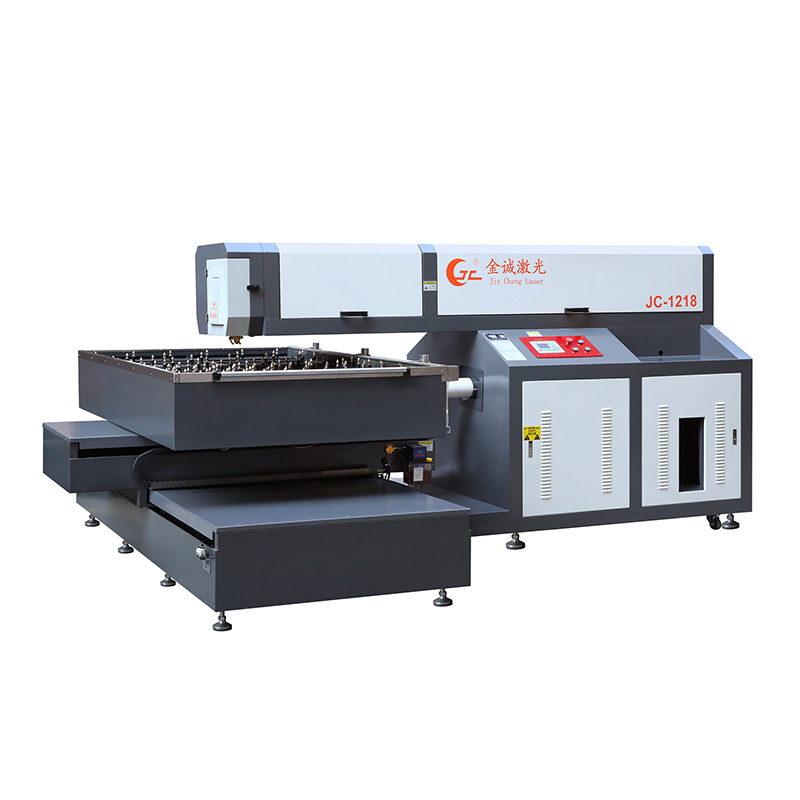

| Model No. | JC-1218-400w |
| The table moving | Gantry construction |
| Laser output power | High power axial flow CO2 laser source |
| X-axis travel-length | 1200mm |
| Y-axis travel-length | 1600~1800mm |
| Cutting precision | 0.01mm |
| Re-Positioning Precision | ≤0.02mm |
| Cutting width kerf | 0.45mm, 0.71mm, 1.05/1.07mm (die board) |
| Average. cutting speed | 20-28m/h |
| Transmission system | Ball screw & Linear guide (HIVIN) |
| Driving system | Yaskawa high-precision servo motors |
| Overall dimensions (L x W x H) | 3800*2300*1600mm |
| G. Weight | 2000KG |
| Laser generator gas matched | CO2(99.99%) |
| Laser cutting thickness | 1-22mm |
| Centrifugal blower | 1 set |
| Power consumption | 4-5 degrees/h |
Features and Functions
Cross table structure, stable cutting, small floor space required for machine
Adopt domestic advanced CO2 sealing type water-cooled laser tube, combined with good precision of CNC control mechanical system. Suitable for wooden cutting die and precision electronic cutting die production
Using split type fixed optical path structure, to avoid the high-power cutting size problem because of the optical path deviation
Unique smoke exhausts design； create a good working environment for worker only 220v external power source is needed and making low cost. There is no need to wait long time for start and running the machine
Can cut 15mm-23mm plywood, PVC board, organic glass. The cutting line width can be 0. 45mm, 0.71mm, 1.05mm, 1.42mm etc
Simple and clear-cutting line adjustment technology Cutting software can be compatible with Auto CAD. CorelDraw, Adobe Photoshop Editing path is very easy and convenient.
