Machine Parameters
| Model No. | HS1290 |
| X-axis travel-length | 1200mm |
| Y-axis travel-length | 900mm |
| Z-axis travel-length | 150mm |
| Moving speed | 13m/min |
| Positioning precision | 0.01mm |
| Re-positioning precision | 0.005mm |
| Max weight of table load | 300kg |
| Resolving power | 0.001 |
| Power | 380V/8KW(three-phase supply) |
| Weight | 5500kg |
| Overall dimensions(L*W*H) | 2300*2200*1600mm |
Applications

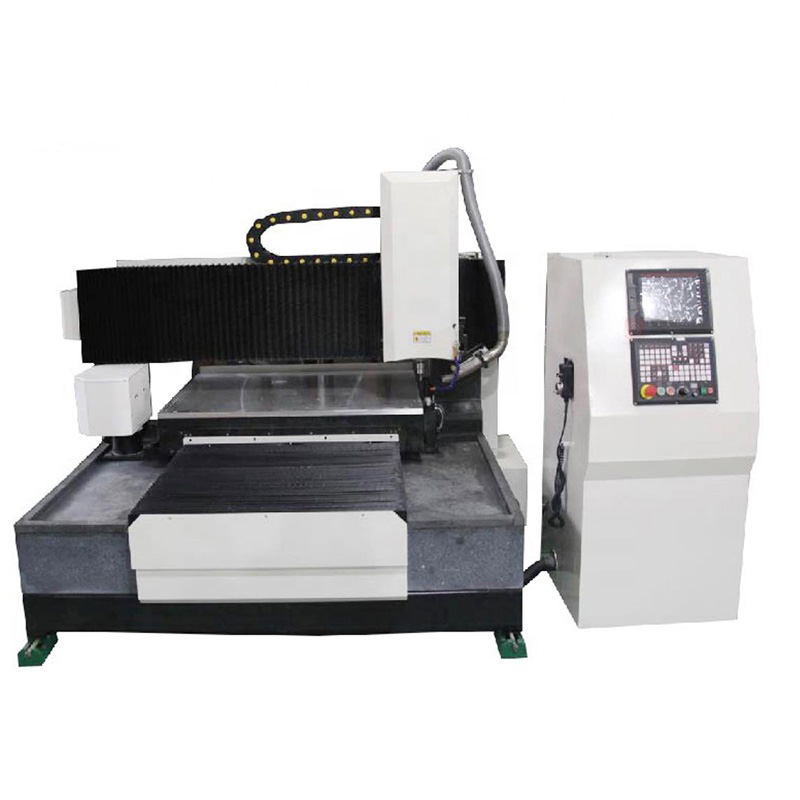

CNC sandwich die routing machine is professional for cigarette case, pill box. Marble and aluminum vacuum cutting table ensure that the machine long-term accuracy and mechanical
Features and Functions
High cutting speed, no-loading speed reaches 15m/min
Marble working table make sure the stability
Re-positioning precision is 0.005mm
Use standard G code
Auto knife changer can finish the production at one time
